Three-dimensional precision fine-tuning Optical experimental displacement platform with large stroke and load for Z-axis shearing manual lifting platform
Precision manual hoist: ZLJG shaft product features:
It is used to adjust the rise and fall of large stroke, not quantitative and large load.
The utility model adopts shear lifting support, precision screw drive, double guideway five-axis positioning mechanism to ensure smooth movement, comfort, high precision and large bearing capacity.
I have a lot of money to do. The upper and lower sides are porous for design and have strong applicability, which can be used as installation surfaces.
Equipped with locking handwheel, safe and reliable

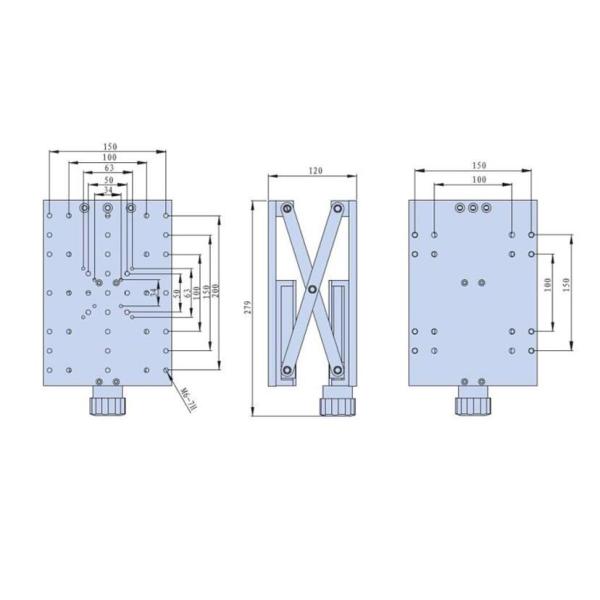

The base and table have link holes with standard hole spacing, which is convenient to be used in combination with other series of products.

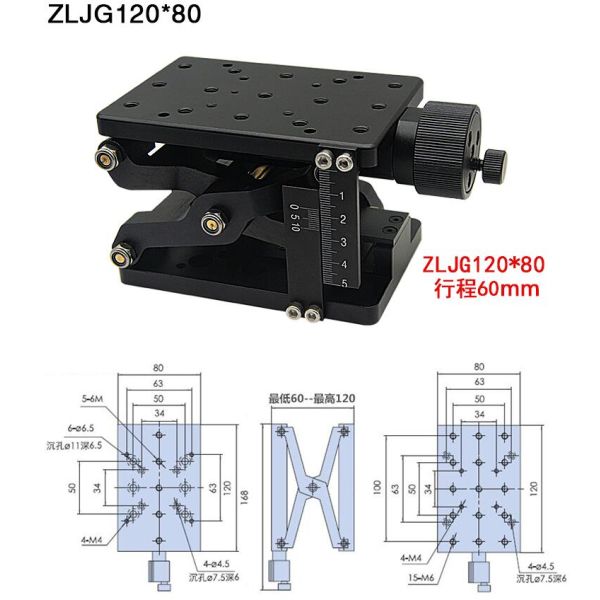

| | Sliding table (mm) | Maximum travel (mm) | Z (mm) | A (mm) | B (mm) | Resistance to load(kgf) | Weight(g) |
| Itineraries-50 (mm) | 60*40 | 50 | 25 | 108 | 126 | 8 | 320 |
| Itineraries-80 (mm) | 80 | 40 | 138 | 156 | 8 | 360 |
| Itineraries-120 (mm) | 120 | 60 | 178 | 196 | 8 | 420 |
FAQ
1. What do you do?
We are a professional manufacturer with over 15 years’ export experience for designing and producing vehicle machinery parts. Focus on saving cost, function approach, production feasibility for your projects.
2. How can I get some samples?
If you need, we are glad to offer you samples for free, but the new clients are expected to pay the courier cost, and the charge will be deducted from the payment for formal order.
3. Can you make CNC machining parts according to our drawing?
Yes, we can make machining parts according to your drawing, 2D drawing, or 3D cad model. If the 3D cad model can be supplied, the development of production can be more efficient. But without 3D, based on 2D drawing we can still make the samples properlyapproved.
4. Can you make CNC machining parts based on our samples?
Yes, we can make measurement based on your samples to make drawings for machining parts making.
5. Is it possible to know how are my products going on without visiting your company?
We will offer a detailed production schedule and send weekly reports with pictures or videos which show the machining progress.
6. How about the lead time?
Generally, 1-2 weeks for samples, 3-4 weeks for mass production.
7. How do you control the quality?
(1)Material inspection--Check the material surface and roughly dimension.
(2)Production first inspection--To ensure the critical dimension in mass production.
(3)Sampling inspection--Check the quality before sending to the warehouse.
(4)Pre-shipment inspection--100% insp
8.What is your payment term?
Goods: 50% prepaid, balance after sample approval. 50% prepaid, balance T/T before shipment.
